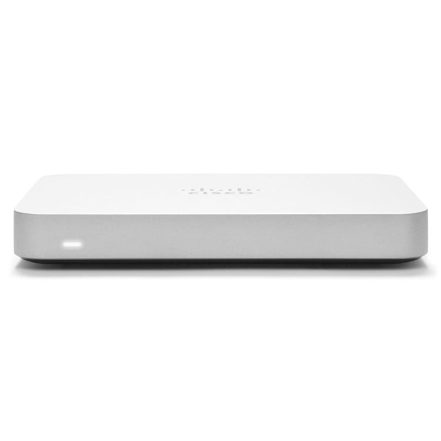

Cisco Meraki Aplicación de Seguridad Teletrabajo (Z1)

Cisco Meraki Aplicación de Seguridad Teletrabajo (Z1)

SKU: Z1 Categorías: ,

Descripción

Datasheet


The Cisco Meraki Z-Series teleworker gateway is an enterprise class firewall, VPN gateway and router. Each model offers five gigabit ethernet ports and wireless for connectivity. Each model is designed to securely extend the power of Meraki cloud managed networking to employees, IT staff, and executives working from home.
Using Meraki’s proven and highly scalable Auto VPN technology, administrators can deploy network services including VoIP and remote endpoints with automatic, zero-touch provisioning. Additionally the Z series provides secure wired and wireless access, and increases end-user productivity through Layer 7 traffic shaping.
All models feature a high-performance stateful firewall, support for VLANs, inter-VLAN routing, and isolation to segregate corporate data from recreational traffic. The Z3 offers the latest in wireless performance with 802.11ac Wave 2 technology with MU-MIMO support to provide reliable and high speed network access for most demanding business applications and latest devices.



Especificaciones
Interfaces
  • WAN interface: 1 x GbE
  • LAN interfaces: 4 x GbE
  • USB: 1 x USB 2.0 (for 3G/4G failover)
Network and Security Services
  • Stateful firewall, 1:1 NAT, DMZ
  • Auto VPN self-configuring site-to-site VPN
  • Client VPN (IPSec L2TP), limit 2 authorized users (with Meraki-hosted authentication only)
  • VLAN and DHCP services
  • Static routing
  • User and device quarantine
Integrated Wireless
  • 4 SSIDs
  • Dual-radio: 1 × 802.11b/g/n (2.4 GHz), 1 × 802.11a/n (5 GHz)
  • Max data rate 600 Mbit/s
  • 4 × interal dipole antennas (gain: 3 dBi @ 2.4 GHz, 4 dBi @ 5 GHz)
  • WPA2-PSK authentication
  • Regulatory: FCC (US), IC (Canada), C-Tick (Australia / New Zealand), RoHS
Monitoring and Reporting
  • Throughput, connectivity monitoring and email alerts
  • Detailed historical per-port and per-client usage statistics
  • Application usage statistics
  • Org-level change logs for compliance and change management
  • VPN tunnel and latency monitoring
  • Network asset discovery and user identification
  • Periodic emails with key utilization metrics
  • Syslog integration
Remote Diagnostics
  • Live remote packet capture
  • Real-time diagnostic and troubleshooting tools
  • Aggregated event logs with instant search
WAN Performance Management
  • Automatic Layer 3 failover (including VPN connections)
  • Application level (Layer 7) traffic analysis and shaping
Management
  • Managed via the web using the Cisco Meraki Cloud Controller
  • Single pane of glass management of wired and wireless networks
  • Zero-touch remote deployment (no staging needed)
  • Automatic firmware upgrades and security patches
  • Centralized policy management
  • Org-level two-factor authentication and single sign-on
  • Role based administration with change logging and alerts
Performance
  • Stateful firewall throughput: 50 Mbps
  • VPN throughput: 10 Mbps
  • Recommended for teleworker (up to 5 users)
Physical and Environmental Specifications
  • Dimensions: 6.46″ × 4.55″ × 1.14″ (164mm × 116mm × 29mm)
  • Weight: 0.9 lbs (0.408 kg)
  • Power: single 18W (12 V / 1.5 A) power supply included
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity: 5 to 95% non-condensing
  • Desktop or wall mount (all standard mounting hardware included)
  • Kensington lock hard point
Regulatory
  • FCC (US)
  • CB (IEC)
  • CISPR (Australia/New Zealand)
Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included.
