Especificaciones
Interfaces

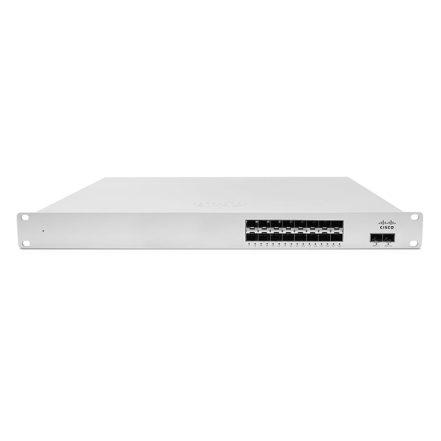

- 16 × 1 GbE SFP
- 2 × 10GbE SFP+
- 1 × 10/100/1000 RJ45 management port
Ethernet Switching Capabilities
- 802.1p Quality of Service prioritization
- 802.1Q VLAN tagging for up to 4095 VLANs
- 802.1D Spanning Tree Protocol (RSTP, STP)
- 802.1ab Link Layer Discovery Protocol (LLDP)
- 802.3ad link aggregation with up to 8 ports per aggregate
- Broadcast storm control
- IGMP snooping for multicast filtering
- 96K Forwarding Table Capacity
Layer 3 capabilities
- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- Warm spare for L3 gateway redundancy
- DHCP Failover
Management
- Managed via the cloud using the Meraki dashboard
- Integrated with Meraki wireless, security appliance, and device management
- No-touch remote deployment (no staging needed)
- Detailed historical per-port and per-client usage statistics
- DHCP and hostname fingerprinting
- SNMPD allows integration with 3rd-party network management solutions
- Seamless over-the-web firmware upgrades
Remote Diagnostics
- Email and SMS (text) alerts
- Live remote packet capture
- Aggregated event and configuration change logs with instant search
Flexible Stacking
- Virtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
- Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS410/425)
Power
- Power input: 100 – 240 VAC, 47-63 Hz
- Power consumption at idle: 45W (MS420), 50W (MS410), 98W (MS425)
- Power consumption full load: 175W (MS420), 85W (MS410), 136W (MS425)
Environment
- Operating temp: 0C to 40C
Mounting
- Rack-mountable with included rack mount hardware
- Front-to-back airflow
Performance
- Non-blocking fabric
- 72/144 Gbps switching capacity on MS410-16/32
- 1.2 microsecond latency
Physical dimensions
- Weight: 18.1lb (8.18kg) MS420-48, 12.6lb (5.7kg) MS410-32, 14lb (6.35kg) MS425-32
- Size (410): 19” (w) x 20.3” (d) x 1.8” (h) (48.5x 51.6x 4.5cm)
Regulatory
- CSA (US)
- IC (Canada)
- CE (Europe)
- C-Tick (Australia/New Zealand)
- RoHS
