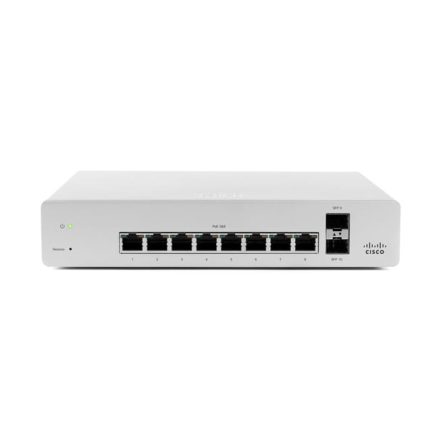

Cisco Meraki Switch Compacto (MS220-8P)

Cisco Meraki Switch Compacto (MS220-8P)

SKU: MS220-8P Categorías: ,

Descripción

Datasheet


The Cisco Meraki MS line of cloud-managed access switches bring the benefits of cloud computing, including management simplicity, reduced complexity, and lower cost, to branch and campus networks.

A Fresh Approach

Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
For example, Cisco Meraki switches are managed through an elegant, efficient cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there’s no need for complicated configuration files.
In addition, Cisco Meraki’s centralized management system gives administrators deep visibility into the network. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. Locate a switch on a floor plan with one click.



Especificaciones
Interfaces
  • 8 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS220-8P model, available on all ports (maximum of 30W per port for PoE+)
  • 2 × SFP Gigabit Ethernet interfaces for uplink
  • Auto negotiation and crossover detection
Uplink Interfaces
  • 2 × SFP Gigabit Ethernet
Power-over-Ethernet
  • 802.3af (PoE) 15.4 W per port and 802/.3at (PoE+) 25.5 W per port
  • Maximum PoE output: 124 W
  • PoE available on all ports simultaneously
  • Pre-standard PoE: supports pre-standard PoE devices
Switching Capacity
  • 20 Gbps
Power
  • 100-240 VAC, 47-63 Hz
Power Consumption (Idle/Full Load Power)
  • 13/159 W max
Physical Dimensions
  • 9.06″ (w) x 8.66″ (l) x 1.79″ (h)(23 x 22 x 4.54 cm)
Weight
  • 2.97 lb. (1.35 kg)
MTBF
  • 421,000
Ethernet Switching Capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging and Q-in-Q VLAN stacking with 4096 addressable tags
  • 802.1D Spanning Tree Protocol (RSTP, STP)
  • 802.1ab Link Layer Discovery Protocol (LLDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate
  • Broadcast storm control
  • IGMP snooping for multicast filtering
  • MAC forwarding table entries: 8,000
Security
  • Integrated two-factor authentication
  • Role-based administration
  • Corporate wide password policy enforcement
  • IEEE 802.1X port-based security
Performance
  • Non-blocking fabric
  • 20 Gpbs non-blocking switching capacity
  • 2.5 microsecond latency
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki wireless, routing, and firewall management
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP and hostname fingerprinting
  • SNMP v2c
  • Seamless over-the-web firmware upgrades
Remote Diagnostics
  • Email and text alerts
  • Live remote packet capture
  • Aggregated event logs with instant search
Scalable Stacking
  • Unified configuration and monitoring of all switches
  • Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Environment
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity: 5 to 95% non-condensing
  • Silent operation for office environments
  • Surface (wall/desk) mountable with integrated brackets
Regulatory
  • CSA (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia/New Zealand)
  • RoHS
Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included
