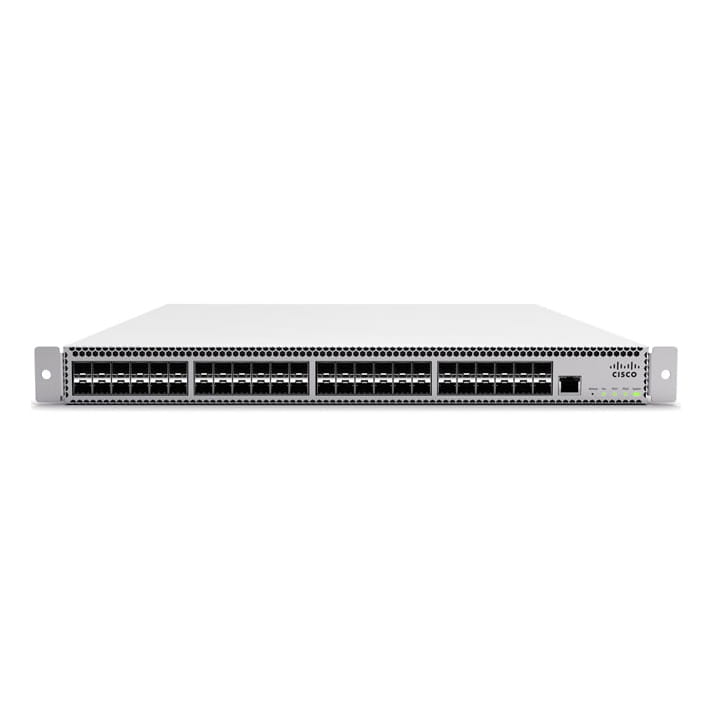

Cisco Meraki (Producto descontinuado*) Switch (MS420-48)

Cisco Meraki (Producto descontinuado*) Switch (MS420-48)

SKU: MS420-48 Categorías: ,

Descripción

Datasheet


The Cisco Meraki MS is the world’s first cloud-managed 10 Gigabit Ethernet aggregation switch bringing the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.

Expanding Cloud Management to the Campus

Cisco Meraki aggregation switches extend Cisco Meraki’s cloud management to campus deployments. Just like our access switches, these 10 Gigabit Ethernet aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Cisco Meraki switch, just plug it in; there’s no need for complicated configuration files — or pre-staging.



Especificaciones
Interfaces
  • 48x 10GbE SFP+/SFP
  • 1x 10/100/1000 RJ45 Management port
Performance
  • Non-blocking fabric
  • 960 Gbps switching capacity
Ethernet Switching Capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging for up to 4095 VLANs
  • 802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate
  • IGMP snooping for multicast filtering
Layer 3 capabilities
  • Dynamic routing (OSPFv2)
  • Static routing
  • DHCP Relay
  • DHCP Server
  • Warm spare redundancy (VRRP)
  • DHCP Failover
Security
  • Integrated two-factor authentication
  • Role-based administration
  • Corporate wide password policy enforcement
  • IEEE 802.1X port-based security
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki wireless, security appliance, and device management
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP and hostname fingerprinting
  • SNMPD allows integration with 3rd-party network management solutions
  • Seamless over-the-web firmware upgrades
Remote diagnostics
  • Email and SMS (text) alerts
  • Live remote packet capture
  • Aggregated event and configuration change logs with instant search
Stacking
  • Unified configuration and monitoring of all switches from the aggregation layer to access layer
  • Virtually Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Power
  • Power input – 400W AC
Environment
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
Hardware & Mounting
  • Rack-mountable with included rack mount hardware
  • Front-to-back airflow
  • Field-replaceable, hot-swappable power supplies
  • Field-replaceable, hot-swappable fans
Physical dimensions
  • 17.3″(w) x 18.6″ (l) x 1.7″ (h) (44 x 47.3 x 4.3 cm)
Weight
  • 18.7 lbs (8.46 kg)
Regulatory
  • CSA (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia/New Zealand)
  • RoHS
Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included
