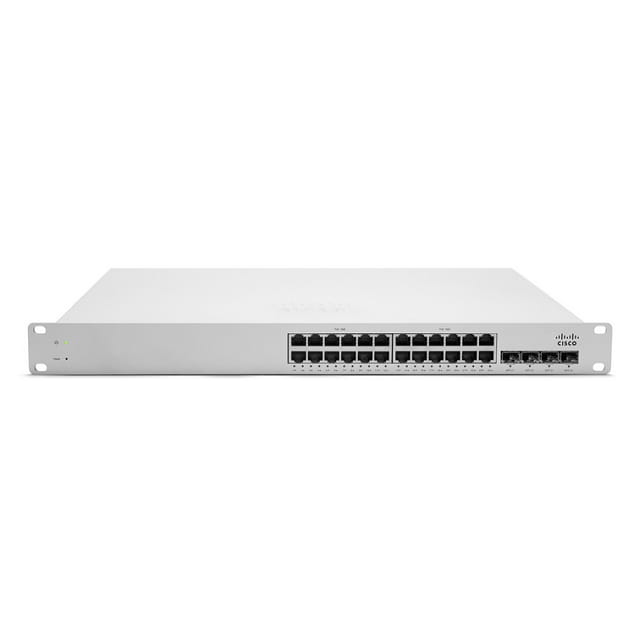

Cisco Meraki (Producto descontinuado*) Switch (MS220-24)

SKU: MS220-24 Categorías: ,

Descripción


The Cisco Meraki MS is the world’s first cloud-managed switch, bringing the benefits of the cloud to enterprise networks: simplified management, reduced complexity, network wide visibility and control, and lower cost for branch and campus deployments. Mission-critical features — like deep, Layer 7 application visibility, virtual stacking, QoS for business critical applications, 802.1X access control, and more — are present in both families.
The MS220 family provide layer 2 access switching, is ideal for deploying to branch locations, and supports an optional, rack-mountable remote PSU.

A Fresh Approach

Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files — or pre-staging.
In addition, Meraki’s centralized management system gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.



Especificaciones
Interfaces
  • 24 x 10/100/1000BASE-T Ethernet RJ45 (4 shared with SFP)
  • 4x SFP for 1GbE uplink
  • Auto negotiation and crossover detection (auto-MDIX crossover)
Uplink interfaces
  • 4 × SFP Gigabit Ethernet (shared)
Power-over-Ethernet
Switching Capacity
  • 48 Gbps
Power
  • 100-240 VAC, 47-63 Hz
Power Consumption (Idle/Full Load Power)
  • 9/18 W max
Physical Dimensions
  • 19.08″ (w) x 10.12″ (l) x 1.75″ (h)(48.46 x 25.7 x 4.4 cm)
Weight
  • 5.97 lb. (2.71 kg)
MTBF
  • 541,400
Ethernet Switching Capabilities
  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging and Q-in-Q VLAN stacking with 4096 addressable tags
  • 802.1D Spanning Tree Protocol (RSTP, STP)
  • 802.1ab Link Layer Discovery Protocol (LLDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate
  • Broadcast storm control
  • IGMP snooping for multicast filtering
  • MAC forwarding table entries: 8,000
Security
  • Integrated two-factor authentication
  • Role-based administration
  • Corporate wide password policy enforcement
  • IEEE 802.1X port-based security
Performance
  • Non-blocking fabric
  • 48 Gbps non-blocking switching capacity
  • 2.5 microsecond latency
Management
  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki wireless, routing, and firewall management
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP and hostname fingerprinting
  • SNMP v2c
  • Seamless over-the-web firmware upgrades
Remote Diagnostics
  • Email and text alerts
  • Live remote packet capture
  • Aggregated event logs with instant search
Scalable Stacking
  • Unified configuration and monitoring of all switches
  • Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Mounting
  • Rack-mountable with included rack mount hardware
  • Desktop-mountable with included feet
Environment
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity: 5 to 95% non-condensing
  • Silent operation for office environments
  • Surface (wall/desk) mountable with integrated brackets
Regulatory
  • CSA (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia/New Zealand)
  • RoHS
Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included
