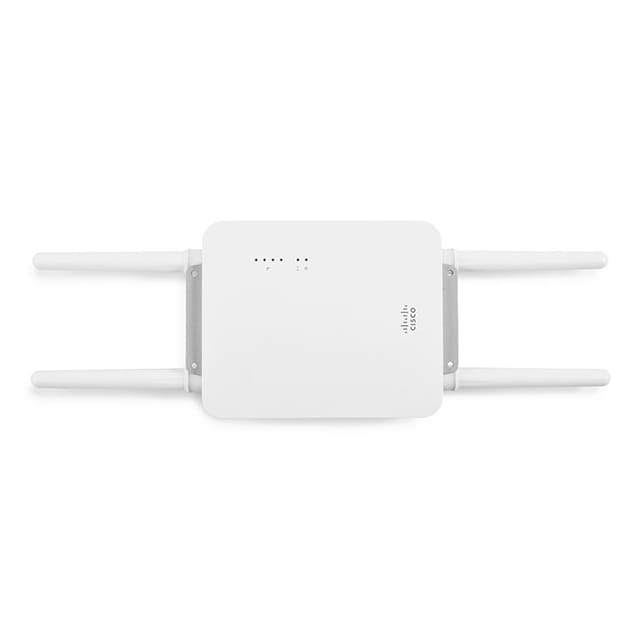

Cisco Meraki (Producto descontinuado*) Access Point (MR66)

SKU: MR66 Categorías: ,

Descripción


High performance, ruggedized, outdoor cloud-managed wireless LAN

The Cisco Meraki MR66 is an enterprise class, dual-concurrent 802.11n cloud managed access point designed for high-density deployments in harsh outdoor locations and industrial indoor environments. The MR66 features dual-concurrent, dual-band operation and advanced 802.11n technologies such as MIMO and beamforming, delivering the high capacity, throughput and reliable coverage required by the most demanding business applications, even in harsh environments.

MR66 and the Cisco Meraki Cloud Controller: A Powerful Combination

The MR66 is managed through the Cisco Meraki Enterprise Cloud Controller, with an intuitive browser-based interface that lets you get up and running quickly without training or certifications. Since the MR66 is self-configuring and managed over the web, it can even be deployed at a remote location without on-site IT staff.
The MR66 is monitored 24×7 from the Cisco Meraki Enterprise Cloud Controller which delivers real-time alerts if your network encounters problems. Remote diagnostics tools also enable real-time troubleshooting over the web.
The MR66’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, so you never have to manually download software updates or worry about missing security patches.



Especificaciones
Radios
  • 1 × 802.11b/g/n radio, 1 × 802.11a/n radio
  • Auto-selection of optimal 2.4 GHz or 5 GHz band
  • Max radio rate of 300 Mbps per radio
  • 2.4 GHz +26 dBm peak transmission power
  • 5 GHz +24 dBm peak transmission power
Interfaces
  • One 100/1000 Mbps auto-crossover Ethernet port
  • Four external N-type connectors
  • Signal strength LEDs
802.11ac & 802.11n Capabilities
  • 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
  • Maximal ratio combining (MRC)
  • Beamforming
  • Packet aggregation
  • Cyclic shift diversity (CSD) support
Power
  • Power over Ethernet: 24 – 57 V (802.3af compatible)
  • Power consumption: 10.5 W max
  • Power over Ethernet injector sold separately
Mounting
  • Mounts to walls and horizontal, vertical, and angled poles
  • Mounting hardware included
Physical Security
  • Security screw included
  • Kensington lock hard point
  • Anti-tamper cable bay
  • Concealed mount plate
Environment
  • Operating temperature: -4°F to 122°F (-20°C to 50°C)
  • IP67 environmental rating (sealed against water and dust)
Physical Dimensions
  • 10.5″ x 7.6″ x 2.2″ (267 mm x 192 mm x 57 mm) not including mount
Weight
  • 1.9 lb (862 g)
Antenna
  • Integrated omni-directional antennas
  • Gain: 3 dBi
Security
  • Integrated policy firewall (Identity Policy Manager)
  • Air Marshal: real-time WIPS with forensics
  • Guest Isolation
  • WEP, WPA
  • WPA2-PSK
  • WPA2-Enterprise with 802.1X
  • TKIP and AES encryption
  • VLAN tagging (802.1Q)
Quality of Service
  • Wireless Quality of Service (WMM/802.11e)
  • DSCP (802.1p)
Mobility
  • PMK and OKC credential support for fast Layer 2 roaming
  • 802.11r and 802.11k
  • L3 roaming
LED Indicators
  • 4 signal strength
  • 1 Ethernet connectivity
  • 1 power/booting/firmware upgrade status
Regulatory
  • FCC (US)
  • IC (Canada)
  • CE (Europe) with DFS
  • C-Tick (Australia)
Warranty
  • 1 year hardware warranty with advanced replacement included
