Cisco Meraki (Producto descontinuado*) Access Point (MR32)

SKU: MR32 Categorías: ,

Descripción


High performance cloud-managed 802.11ac wireless

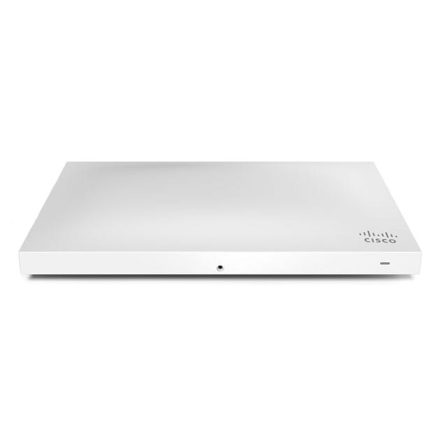

The Cisco Meraki MR32 is a three–radio, cloud-managed 2×2 MIMO 802.11ac access point. Designed for general purpose next-generation deployments in offices, schools, hospitals and hotels, the MR32 provides performance, security, and manageability.
The MR32 provides a maximum 1.2 Gbps data rate with concurrent 802.11ac and 802.11n 2×2:2 MIMO radios, and security and spectrum visibility via a third radio dedicated to 24×7 WIDS/WIPS and automated RF optimization. An integrated Bluetooth low energy (BLE) radio delivers Beacon functionality and BLE device scanning.
The combination of cloud management, 802.11ac, full-time RF environment scanning, and an integrated Bluetooth technology delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, both today and tomorrow.

MR32 Cloud Management: A Powerful Combo

The MR32 is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Since the MR32 is self-configuring and managed over the web, it can even be deployed at a remote location without on-site IT staff.
The MR32 is monitored 24×7 via the Meraki cloud, which delivers real-time alerts if the network encounters problems. Remote diagnostics tools enable real-time troubleshooting over the web, meaning multi-site, distributed networks can be managed remotely.
The MR32’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.



Especificaciones
Radios
  • One 802.11b/g/n, one 802.11ac/a/n radio, and one dedicated for dual-band WIPS & spectrum analysis
  • Concurrent operation of all three radios
  • Max data rate 1.2 Gbit/s
  • Integrated Bluetooth low energy radio (concurrent to WiFi radios)
Interfaces
  • 1 × 100/1000Base-T Ethernet (RJ45)
  • 1 × DC power connector (5mm x 2.1mm, center positive)
Operating Bands
  • FCC (US)
    • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.725 -5.825 GHz (UNII-3)
  • EU (Europe)
    • 2.412-2.484 GHz
    • 5.150-5.250 GHz (UNII-1)
    • 5.250-5.350, 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2)
802.11ac & 802.11n Capabilities
  • 2×2 multiple input, multiple output (MIMO) with two spatial streams
  • Maximal ratio combining (MRC)
  • Beamforming
  • 20, 40, and 80 MHz (802.11ac), 20 and 40 MHz channels (802.11n)
  • Packet aggregation
  • Cyclic shift diversity (CSD) support
Power
  • Power over Ethernet: 37 – 57 V (802.3af supported)
  • 12V DC
  • Power consumption: 13.87 W max (802.3af)
  • Power over Ethernet injector and DC adapter sold separately
Mounting
  • All standard mounting hardware included
  • Desktop
  • Wall mount
  • Ceiling tile rail (9/16, 15/16 or 1 ½» flush or recessed rails)
  • Assorted cable junction boxes
Physical Security
  • Security screw included
  • Kensington lock hard point
  • Anti-tamper cable bay
  • Concealed mount plate
Environment
  • Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
  • Humidity: 5 to 95% non-condensing
Physical Dimensions
  • 10.0″ x 6.1″ x 1.5″ (253.4 mm x 155.8 mm x 37.1 mm) not including deskmount feet or mount plate
Weight
  • 25 oz. (0.7 kg)
Antenna
  • Integrated omni-directional antennas
Security
  • Integrated policy firewall (Identity Policy Manager)
  • Air Marshal: real-time WIPS with forensics
  • Guest Isolation
  • WEP, WPA
  • WPA2-PSK
  • WPA2-Enterprise with 802.1X
  • TKIP and AES encryption
  • VLAN tagging (802.1Q)
Quality of Service
  • Advanced Power Save (U-APSD)
  • DSCP (802.1p)
Mobility
  • PMK and OKC credential support for fast Layer 2 roaming
  • 802.11r and 802.11k
  • Layer 3 roaming
LED Indicators
  • 2 Ethernet status
  • 1 power/booting/firmware upgrade status
Regulatory
  • FCC (US)
  • IC (Canada)
  • CE (Europe)
  • C-Tick (Australia / New Zealand)
  • UL2043 (Plenum rating)
  • RoHS
Warranty
  • Lifetime hardware warranty with advanced replacement included
